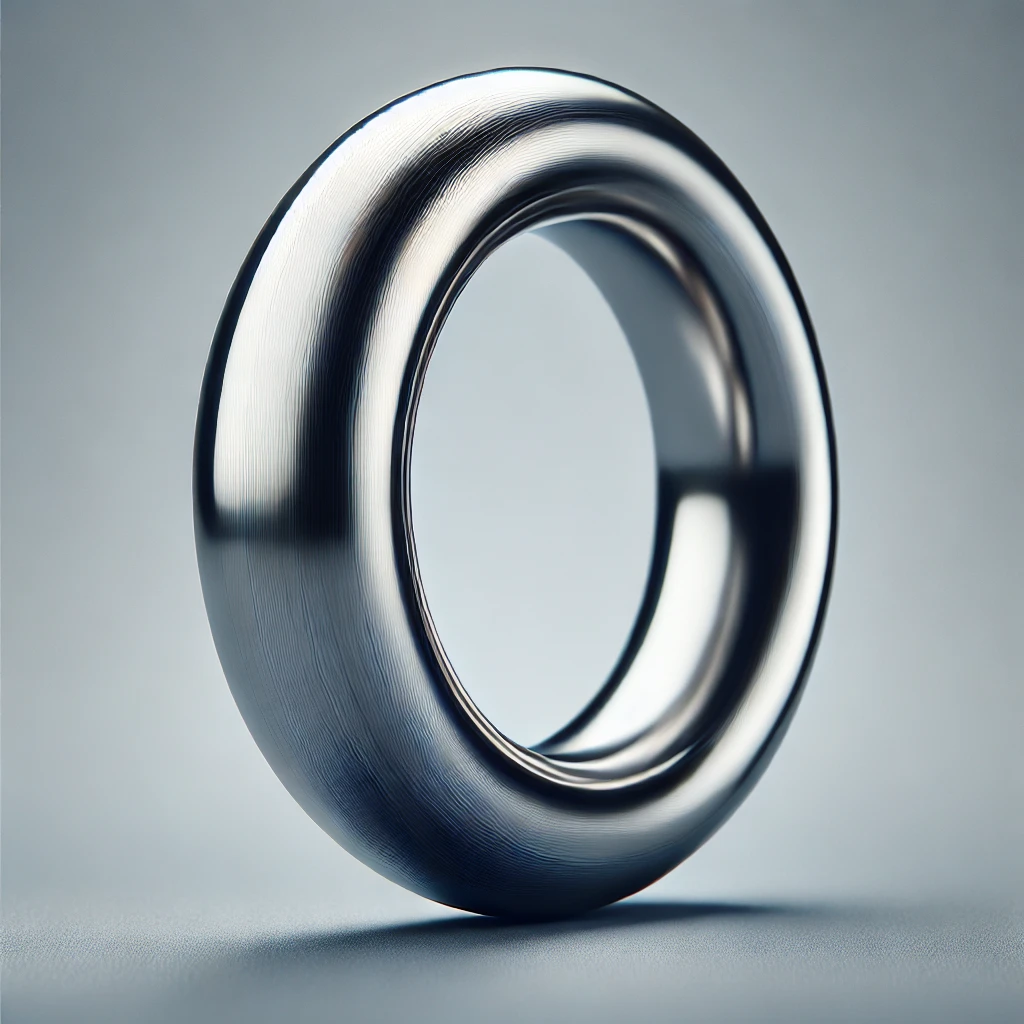

A metal O-ring is not simply a high-temperature replacement for an elastomeric or polymer O-ring. Rather, it is an engineered static-sealing component whose performance depends on several key characteristics, from surface finish to its orientation in the system.

In this article, we discuss when metal O-rings are commonly used, the three types of metal O-ring seals, and the information needed to correctly specify a metal O-ring.

When Elastomer O-Rings Reach Their Limits

An elastomeric O-ring can remain the better choice where conditions are moderate, and recoverability, cost, or installation tolerance matters more. Engineers begin considering metal O-ring seals as a viable option when there is …

• High pressure or pressure cycling
• High or low temperatures, including cryogenic service
• Vacuum or controlled low-leakage systems
• Aggressive media, radiation, or environments where elastomer aging is a concern
• Static flanges, closures, valves, pressure vessels, and face-seal interfaces

Keep in mind that metal seals generally impose higher seating load and groove design requirements.

Standard Metal O-Ring Seals

The standard hollow metal O-ring is a high-strength static-sealing option. It offers minimal springback compared with a spring-energized construction, which makes joint geometry, compression control, and surface quality especially important. This particular configuration works well when pressure, temperature, and vacuum conditions are challenging.

They are best for controlled, static assemblies. They do require a well-designed groove and adequate bolt or clamp load, and the selected tube material, plating, and coating must be matched to media, temperature, corrosion, and leakage requirements. Finally, they may be appropriate where system conditions favor robust metallic containment but repeated recovery is not the central need.

Standard metal O-ring seals are used in automotive exhaust systems, static flange seals in the oil & gas industry, and static seals for industrial machinery.

Spring-Energized Metal O-Ring Seals

Having an internal spring improves resilience and helps the seal maintain contact as the joint undergoes thermal changes, tolerance variations, or pressure cycling. This design typically offers enhanced flexibility and lower leakage in extreme conditions, including cryogenic, high-pressure, and vacuum environments. However, the spring does not eliminate the need for proper gland design; rather, it provides a controlled way to add recoverability to an otherwise metal-dominant sealing system.

Spring-energized metal O-ring seals are often used in high-pressure fuel systems, cryogenic sealing, wellhead seals in oil & gas, and steam turbine sealing in power generation.

Balanced Metal O-Ring Seals

Balanced metal O-ring seals are engineered for high-pressure, high-temperature applications. Pressure-assisted sealing is a balanced design that includes venting to enhance the O-ring’s sealing effect. The orientation of balanced metal O-ring seals is extremely important because the vented holes must be aligned with the system pressure to function properly.

These balanced metal O-ring seals are used as pressure-vessel seals in aerospace applications, static seals for chemical-processing vessels, and pressure-activated seals for the oil & gas industry.

The Design Inputs Engineers Must Provide

What kind of design inputs are needed to spec a metal O-ring seal?

• Static or dynamic service
• Pressure range, peak pressure, and pressure direction
• Internal, external, or alternating pressure
• Operating and thermal-cycle temperature range
• Fluid, gas, vacuum, or cryogenic medium
• Required leak rate and test method
• Mating materials and corrosion environment
• Available gland dimensions and installation load
• Surface finish, flatness, and hardness
• Reuse versus single-use sealing requirement
• Material restrictions, including plating or coating compatibility

Remember that sealing performance is a system outcome: it cannot be predicted by seal type alone. So even with an excellent metal O-ring design, if the system itself is not accounted for, then the O-ring is not designed correctly.

Common Mistakes

Here are the most common mistakes when specifying a metal O-ring seal:

• Treating a metal O-ring as a drop-in elastomer O-ring replacement
• Ignoring pressure direction on a balanced seal
• Underestimating seating load
• Specifying a seal before defining allowable leak rate
• Failing to account for thermal expansion of flanges and hardware
• Using unsuitable mating-surface finish or damaged flange faces
• Selecting a coating for lubricity without checking media and temperature compatibility

Conclusion

Metal O-ring seals are engineered static-sealing components, not drop-in replacements for elastomer O-rings. Standard, spring-energized, and balanced designs each suit different pressure, temperature, recovery, and leakage requirements. Successful selection depends on the entire sealing system: pressure direction, service media, thermal range, leak-rate target, gland geometry, seating load, mating surfaces, and material compatibility.
